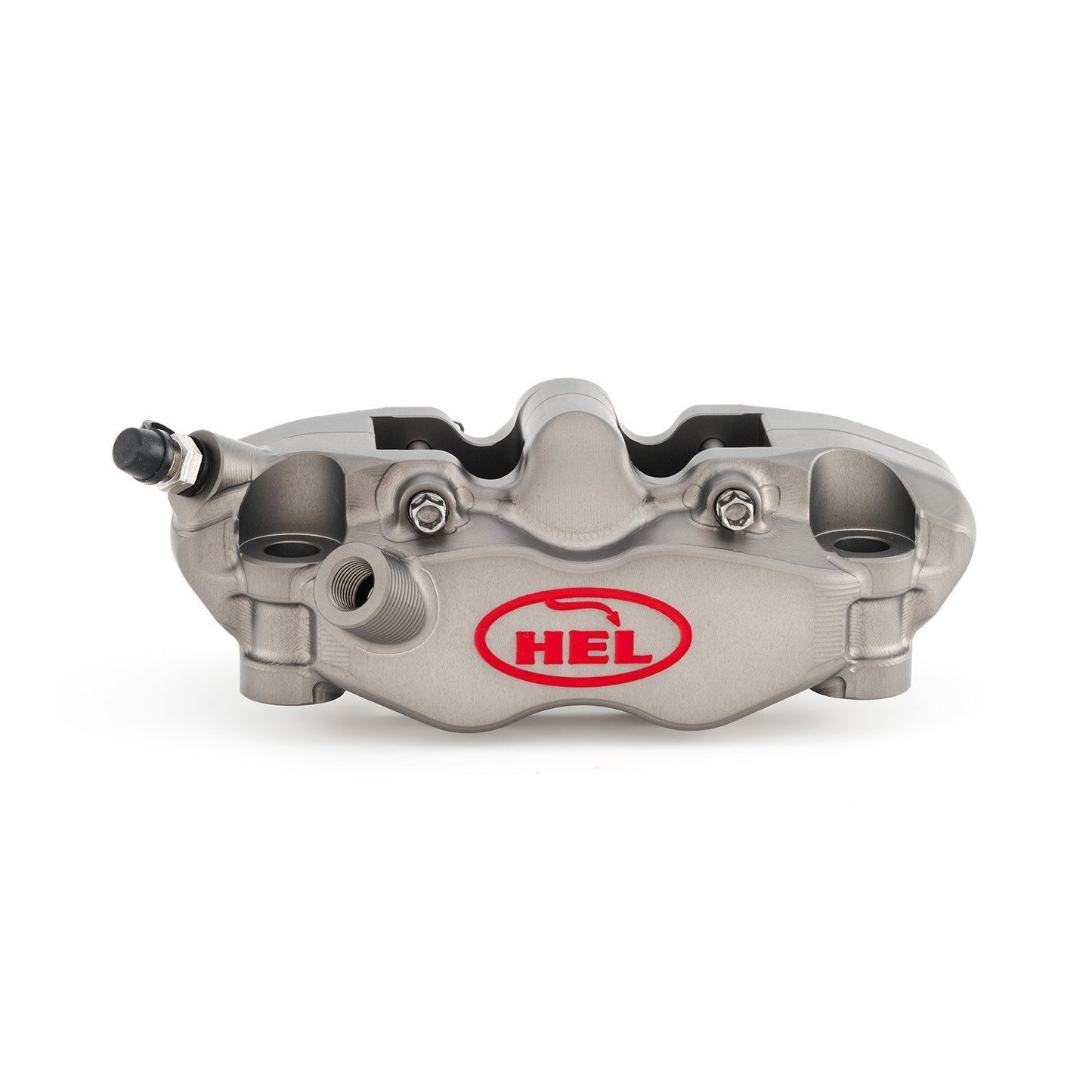

HEL V2 Racing brake caliper - CNC machined from 6082 T6 aluminum

HEL V2 Racing brake caliper - CNC machined from 6082 T6 aluminum


HEL Caliber
FULL color
HEL caliber target

Regular price 3.499,00 DKK
Sale price 3.499,00 DKK Regular price
Tax included. Shipping calculated at checkout.

Secure online shopping


  • 100% secure payment
  • Well-known Danish company
  • Excellent reviews

Secure online shopping on a Danish webshop, exclusively with encrypted payments via recognized payment solutions

Payment methods
  • American Express
  • Apple Pay
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Secure online shopping with Pitboxen


HEL V2 Racing brake caliper, milled out of 6082 T6 Aluminum

Upgrade of the popular Hel V2 caliber.

The HEL V2 Racing brake caliper offers a more rigid and robust structure than the V1 model, where the two halves are now held together by 5 instead of 3 bolts. In addition, the mounting of the banjo bolt is located differently, which makes brake work easier and faster on the track. The bleed screw is also now located differently. In addition, the Racing version differs from the regular version by having cooling fins on the back of the caliper, for better cooling during extreme use.

We have this exact caliber mounted on our own motorcycle, and boy-oh-boy, it works!!!!

Isn't a caliber just a caliber?

Many brake calipers today are cast in aluminum to achieve a lower price. This method has a number of disadvantages. One of the major disadvantages is that both threads and flow channels etc. must be machined for the caliper to be effective. But even after machining there can be small pockets and unevenness in the surface, which makes the caliper conduct heat less effectively due to poorer flow, which results in poorer braking properties. In addition, a cast caliper is not as stiff. These HEL brake calipers are milled from two solid blocks of aluminum and therefore all surfaces are meticulously machined. In addition to a better brake caliper with better heat dissipation, you also get a caliper that has a very nice surface. This is hardware that beats the well-known M50 and M4 calipers by a long way! Everything is optimized to perfection, even the red logo that is painted with a brush by hand! Unlike many other calipers, these calipers only get fluid from one side, making the brakes much easier to bleed. HEL's stainless steel pistons work effectively to keep the heat from the pads away from the caliper itself, which is why the brake fluid can be kept significantly cooler than with aluminum and titanium pistons. A must for fast track days and road racing. HEL's brake calipers are developed in Superbike and are used, among other things, in BSB (British superbikes) where the equipment is tested to the extremes, which also means that the calipers have been exposed to all worst case scenarios. The next step up the performance ladder are CNC milled monoblock calipers, but here we are talking about a COMPLETELY different price tag. These calipers last the whole way! AND yes, we have them sitting on our exhibition motorcycle! You won't find better brake calipers for motorcycles. Specifications:
  • CNC Machined From 6082-T6 Billet
  • Manufactured by HEL in the UK
  • Lightweight 800 Grams Each
  • Stainless Steel Heat Sink Pistons
  • 100mm & 108mm Versions
  • Free-Flo Internal Fluid Circuit For Rapid Bleeding
  • Road Legal Race Caliper
  • Race Inspired Nickel Plating
The calipers are delivered without brake pads, and can be delivered in 108mm (Japanese motorcycle models) or 100mm (for Öhlins front fork). SBS 809 brake pads fit the HEL V1 calipers, we recommend 809RST for street and track days, and 809DC or 809DS-1 or DS2 for pure racing. It is possible to purchase a single caliper for the right or left side if you want to upgrade the brakes on a motorcycle with a single caliper. It is also possible to buy mounting kits that fit front forks with radially mounted brakes, e.g. SV1000. Please note that the spacer kit and mounting bolts are NOT included in the set, but can be purchased separately. Check out reviews on HEL's website: https://www.helperformance.com/hel-v2-100mm-solid-billet-4-piston-front-radial-brake-calipers-with-flat-back

CNC100R_G-1-1

HEL Performance

Specifications

Cartridge type

Adjustable preload

Adjustable rebound damping

Compression damping

Assembly

Weight

Maintenance

Approval:

Approval for street use

Special notes
